Lowara SV  Series Pumps

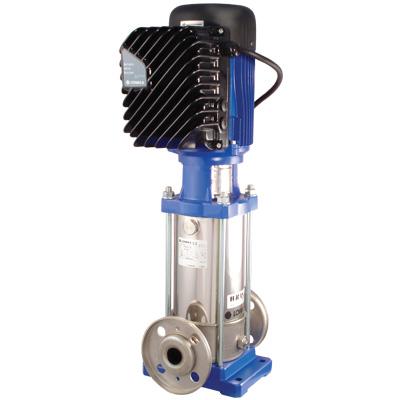

e-SV vertical multistage pump in stainless steel

The Lowara e-SV vertical multistage pump is a highly reliable and technologically advanced multipurpose pump. It’s capable of satisfying the needs of a wide variety of users and many different construction designs are available. The e-SV range feature models in eleven sizes  with 1-3-5-10-15-22-33-46-66-92-125 m³/h nominal capacities.

All pumps ≥ 1.5kW are equipped with IE3 standard motors.

Design features:

• Balanced mechanical seal replaceable with-out need for pump disassembling (for 10-15-22SV>=5,5kW, 33-46-66-92-125SV)
• “O” Ring seat design to allow for simple outer sleeve dis-assembly
• Floating for self alignment replaceable diffuser wear ring (PPS Glass filled technopolymer to withstand chemically corrosive, mechanically aggressive and high temperature liquids)
• Reduced impeller axial thrust for longer standard motor bearing life (17,500h)
• Hard Material Intermediate bush bearing (Tungsten Carbide/Silicon Carbide) to improve life and ability to withstand heavy duty applications, like boiler feeding
• High temperature seal option (180°C max) with low NPSH design, high pressure design (up to 40 Bar), and passivated & electro-polished versions are available upon request.
• 0.37 - 18.5kw
• Single or 3 phase
• 2 Year Warranty

Further unique features of the e-SV include the integration of performance diagnostic devices such as the i-Alert™ vibration monitor and Dry Run sensor. The  i-Alert™ and the Dry Run sensor are available as an accessory for all models.

The e-SV is certified by WRAS, ACS and D.M. 174 for use with potable water.

Versions

• e-SV: standard pump with IE3 motor
• e-SVE: Variable speed Smart Pump with ultra premium efficiency IES2 drive package including a permanent magnet IE5 motor (up to 1,5 kW)
• e-SVH: Variable speed pump with Hydrovar pump controller (up to 22 kW)

Click here to learn more about this series.
